Solution

DELMIA Virtual Factory

DELMIA Virtual Factory provides solutions for the creation and simulation of a 3D digital twin of a factory.

Enterprise and manufacturing solutions
Delmia virtual factory

Solutions for the creation and simulation of a 3D digital twin of a factory

3D layout models of the machines, workcells, lines and plants can be created from scratch using standard library components, from a 2D drawing, or from a point cloud generated from scanning your actual facility.

These models can be used to perform factory flow simulation analyses in order to optimise material flows and improve productivity. The same model can be used to visualise and check the mechanical behavior of machines and tools on the line in order to verify the manufacturability of new products or the performance of layout changes. You can even connect your workcells to a PLC and perform a “virtual commissioning” of your workcell or line.



DELMIA Virtual Factory comprises of two distinct areas:

  • Factory Planning & Layout
  • Manufacturing Flow & Simulation
Video Introduction

Discover DELMIA Factory of the Future

DELMIA Virtual Factory

Factory Planning & Layout

Define and simulate the plant layout, flow, assets and resources needed to produce products efficiently and in a safe environment.

Using 3D virtual experience twin technology, rapidly validate normal production change requests or quickly pivot operations to alternative products as the result of disruptive events.

Virtual Commissioning

Robots and machines are tested virtually before sending them to real machines.

Simulate Machines and Ergonomics

As the factory flow is modelled, machines and the ergonomics that are associated with the line are simulated

Define Plant Layout

Manage a full plant Layout in 3D including the ability to position and manipulate resources. With layout data accessible throughout the extended enterprise, it means that intellectual property can be leveraged.

Manufacturing Flow & Simulation

Enrich the product and resource definition; define and validate a process plan and create work instructions for the manufacturing process to meet production goals.

Digital visualisation of resource and process changes help accelerate time-to-production in any scenario, from any location, leveraging the cloud.

Machine & Tooling Design

Define and Build Virtual Machines in an intuitive 3D environment.

Create 3D Work Instructions

Create the work instructions for the machine or the operator.

Enrich Product and Resource Definition

Convert the EBOM into an MBOM to understand how to manufacture the part.

Simulate Factory Flow

Once the production line is created in a virtual model, the flow of products can be simulated and the flow of work in those production lines, to have validation of manufacturing process plans.

Define Process Plan

With the definition, it is time to design the process plan which will include the actual sequence of events.

DELMIA Virtual Factory Content

Learn more about DELMIA Virtual Factory solutions with our resource content:

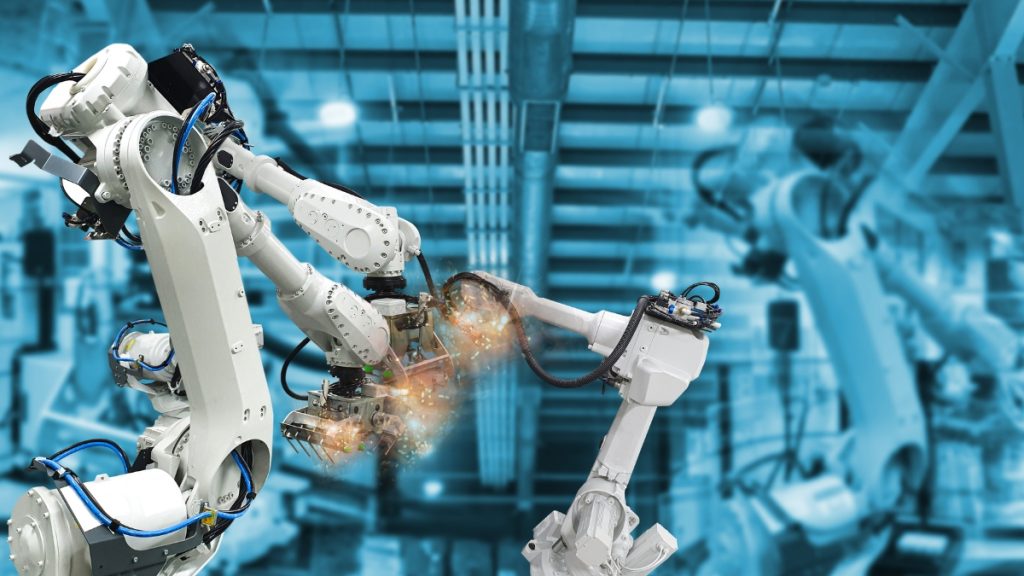

Robotics Industry

At a Glance: The Robotics Industry

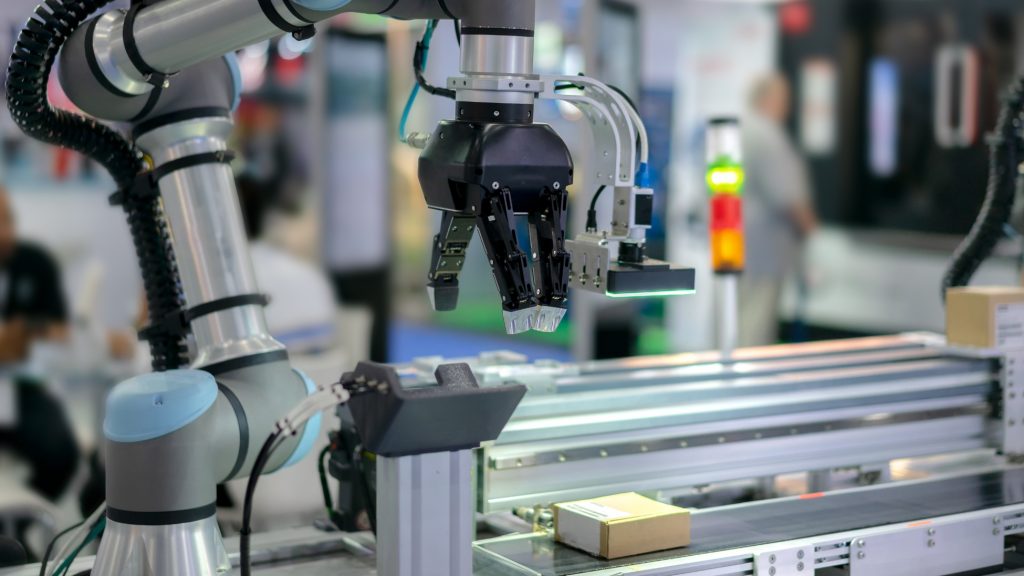

DELMIA Robot Programming

DELMIA Robot Programming & Modeling in Production

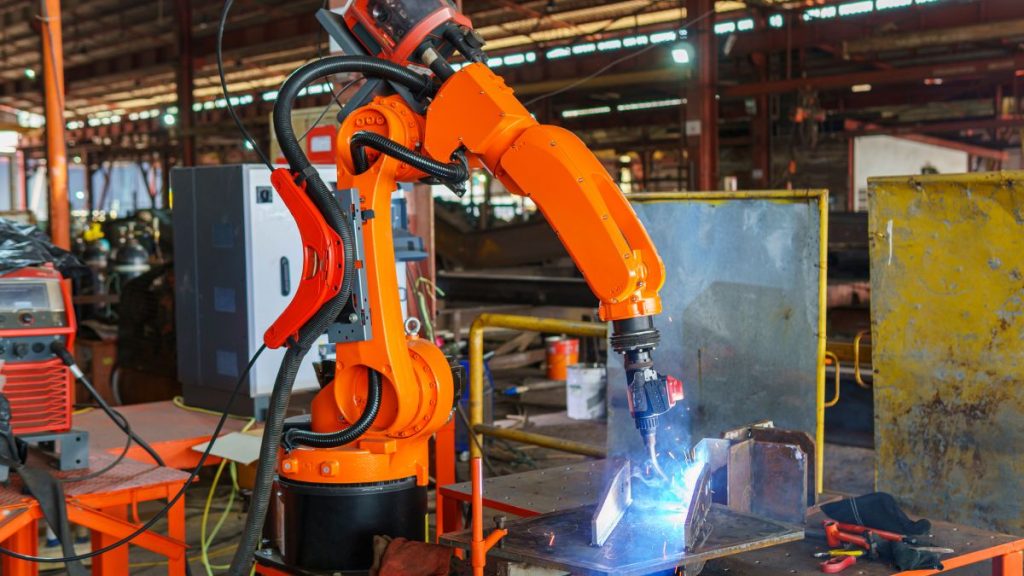

The Rising Value of Robotics in Manufacturing

Robotics in Manufacturing
Virtual Twins and Robotics: Accelerating the Future of Sustainable Manufacturing

Virtual Twins and Robotics: Accelerating the Future of Sustainable Manufacturing
Rail Vehicle Dynamics: Harnessing the Power of Multibody System Simulation for Rail Applications

Rail Vehicle Dynamics: Harnessing the Power of Multibody System Simulation for Rail Applications
A Comprehensive Guide to Requirements Management and Traceability

A Comprehensive Guide to Requirements Management and Traceability
Artificial Intelligence in Manufacturing

Artificial Intelligence in Manufacturing Industries
battery system ENT

On-Demand Webinar: Battery Design: From Chemistry to System

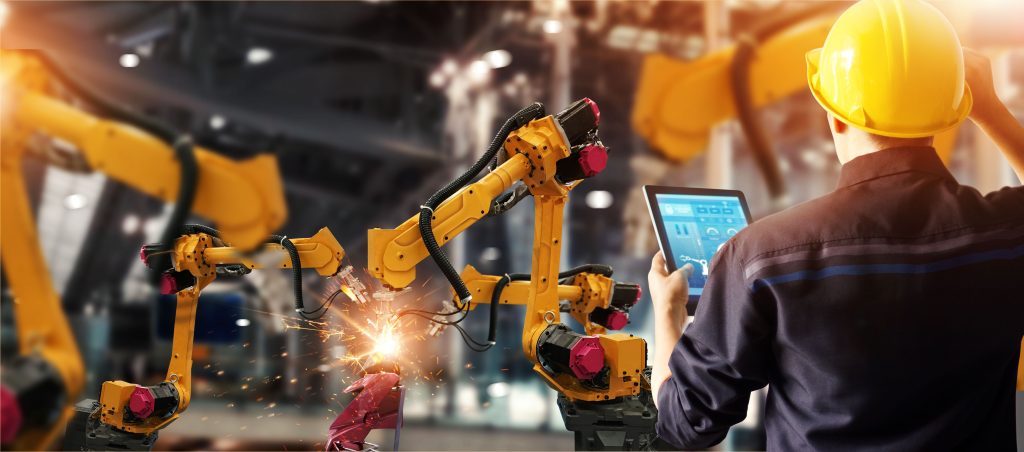

The Rise of Robotics in Manufacturing
